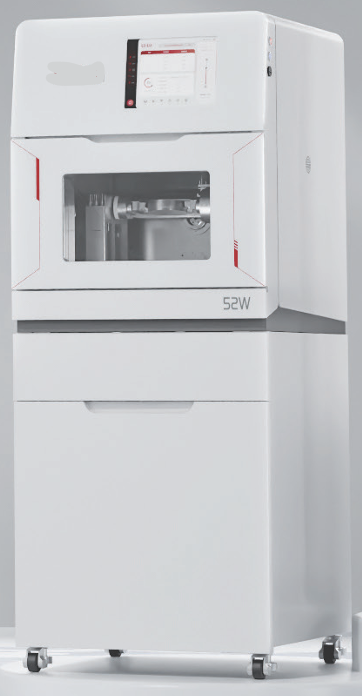

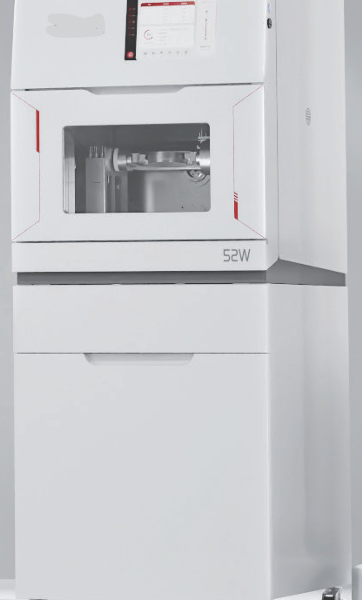

Dentmill 52W Milling 3D Printer

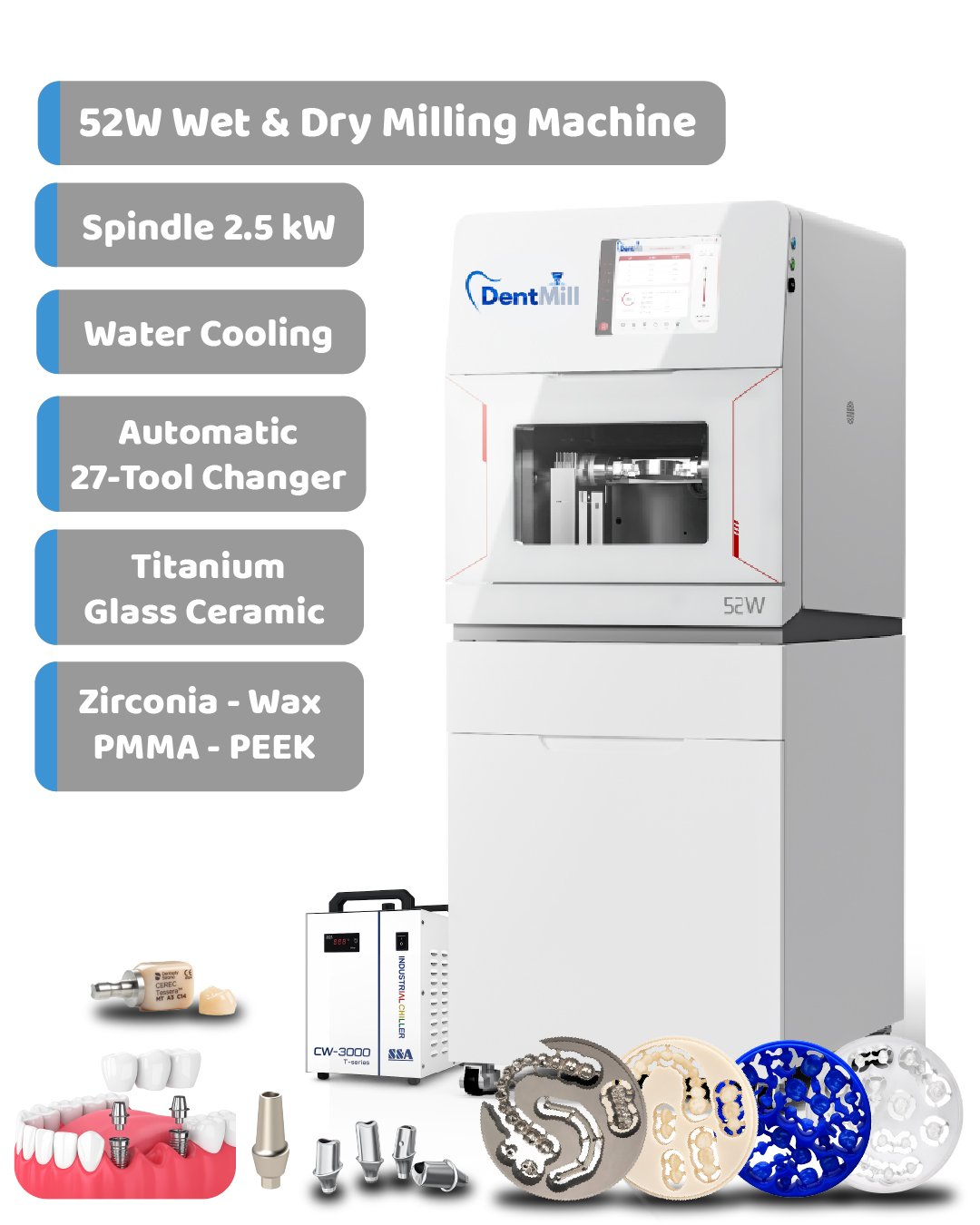

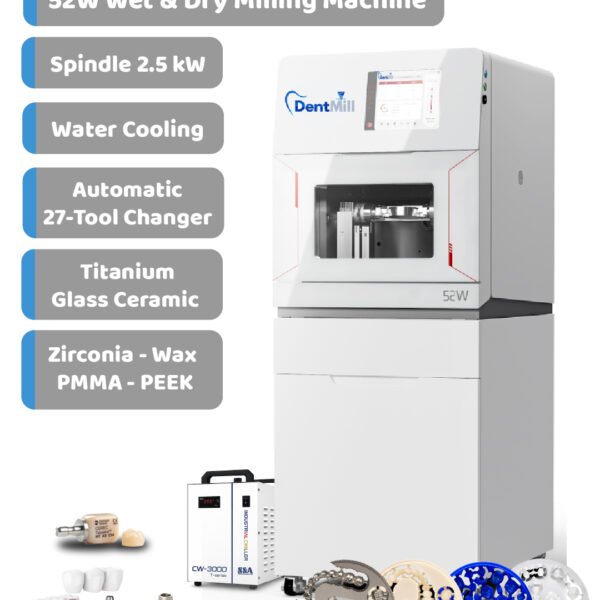

52W Fully Functional 5-Axis Wet & Dry Milling Machine

Short Description:

The LULU 52W is the ultimate heavy-duty solution for digital dental laboratories, delivering seamless fully functional 5-axis wet and dry milling within a single machine. Built on a premium integrated mineral casting chassis for maximum vibration absorption, it easily processes everything from Zirconia and Wax to ultra-hard materials like Titanium (Ti) and Glass Ceramics. Featuring an expanded 21-tool automatic magazine and a high-power 2.5KW spindle, it is engineered for non-stop, industrial-grade production.

Detailed Description:

💡 Advanced Features & Core Technologies:

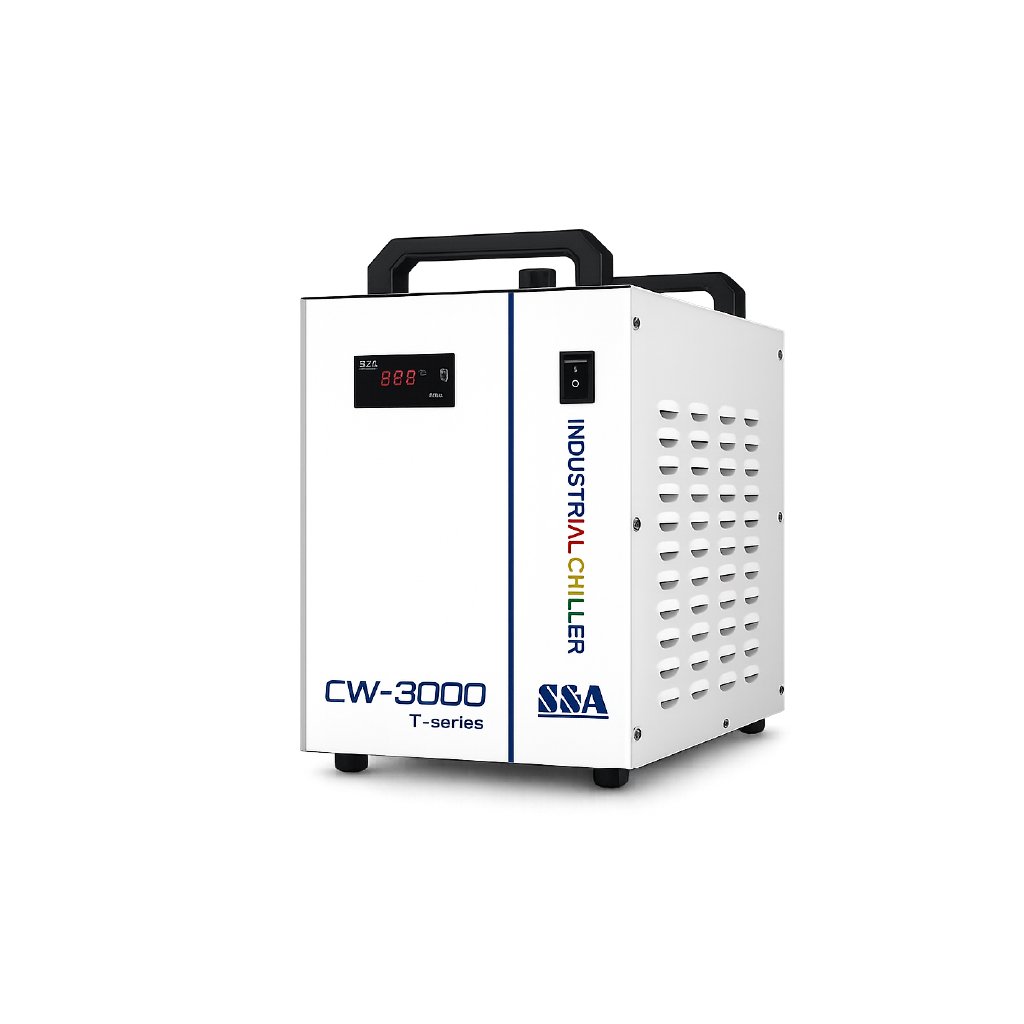

• Dry & Wet Auto-Switching System: Features a smart, built-in convertible water tank, milling fluid tank, and dedicated water chiller that automatically switches modes based on your material choice.

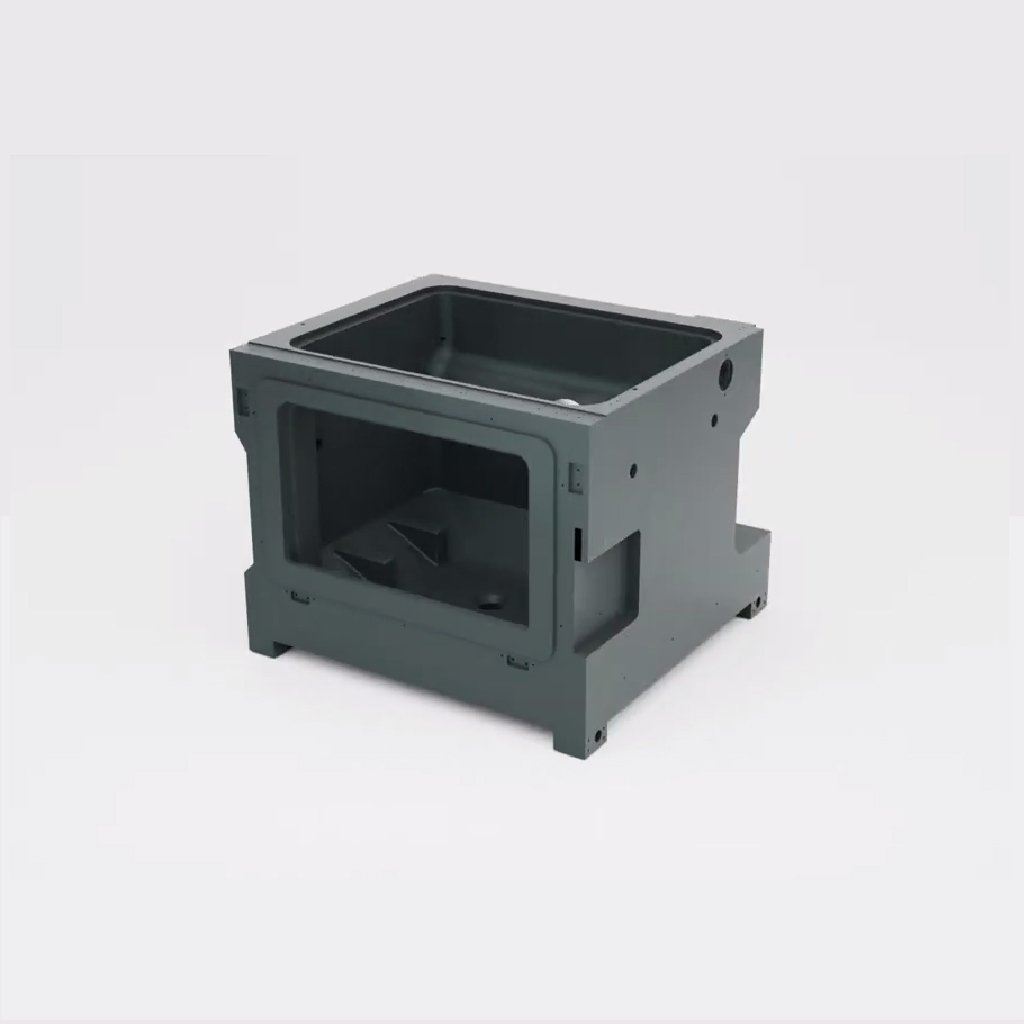

• Integrated Mineral Casting: A rigid, industrial-grade framework designed for long-term accuracy and extreme stability, eliminating micro-vibrations during heavy metal milling.

• Ultimate Multi-Material Versatility: Engineered to mill a comprehensive range of dental materials: Zirconia, PMMA, Wax, Glass Ceramic, Titanium (Ti), PEEK, and CoCr.

• High-Power AC 2.5KW Spindle: A heavy-duty, water-cooled spindle spinning up to 60,000 RPM with a robust $\Phi 6$ mm collet, making light work of hard metals and block ceramics.

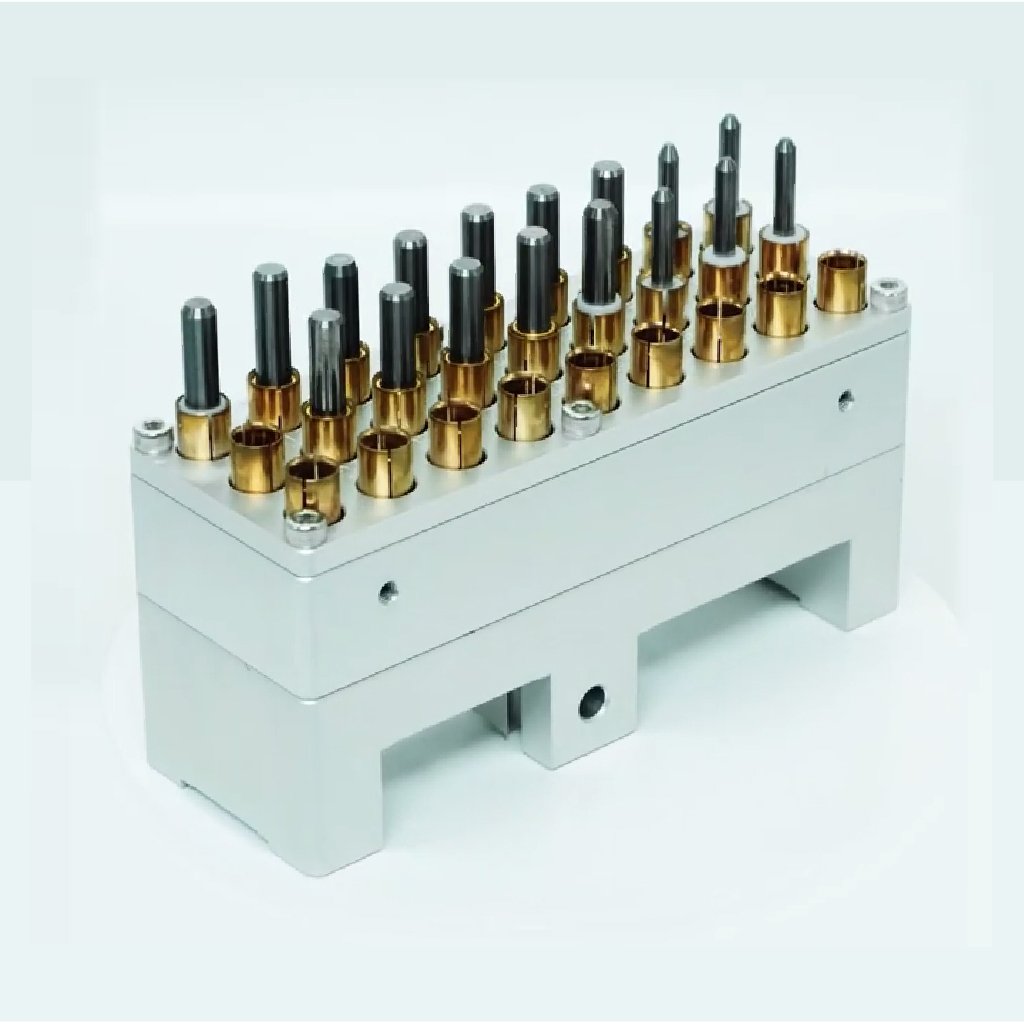

• Massive 21-Tool Capacity: The automatic tool changer holds up to 21 tools, allowing you to load multiple tool sequences simultaneously for different materials without manual swaps.

• Versatile Holder Types: Supports specialized adapters for all workflows, including Half-open blank holders (C-clamp), Titanium holders, and Glass ceramic holders.

• Industrial-Grade Automatic Calibration: Delivers premium precision with an auto-calibration error margin of only $\pm 0.005$ mm.

• 90-Degree Articulation: Enables high-angle processing to accurately replicate steep undercuts and intricate margins.

• Intelligent Automation: Complete with open CAM compatibility, smart tool life monitoring, an after-sales maintenance test board, and a smart power-outage recovery system.

📊 Technical Specifications:

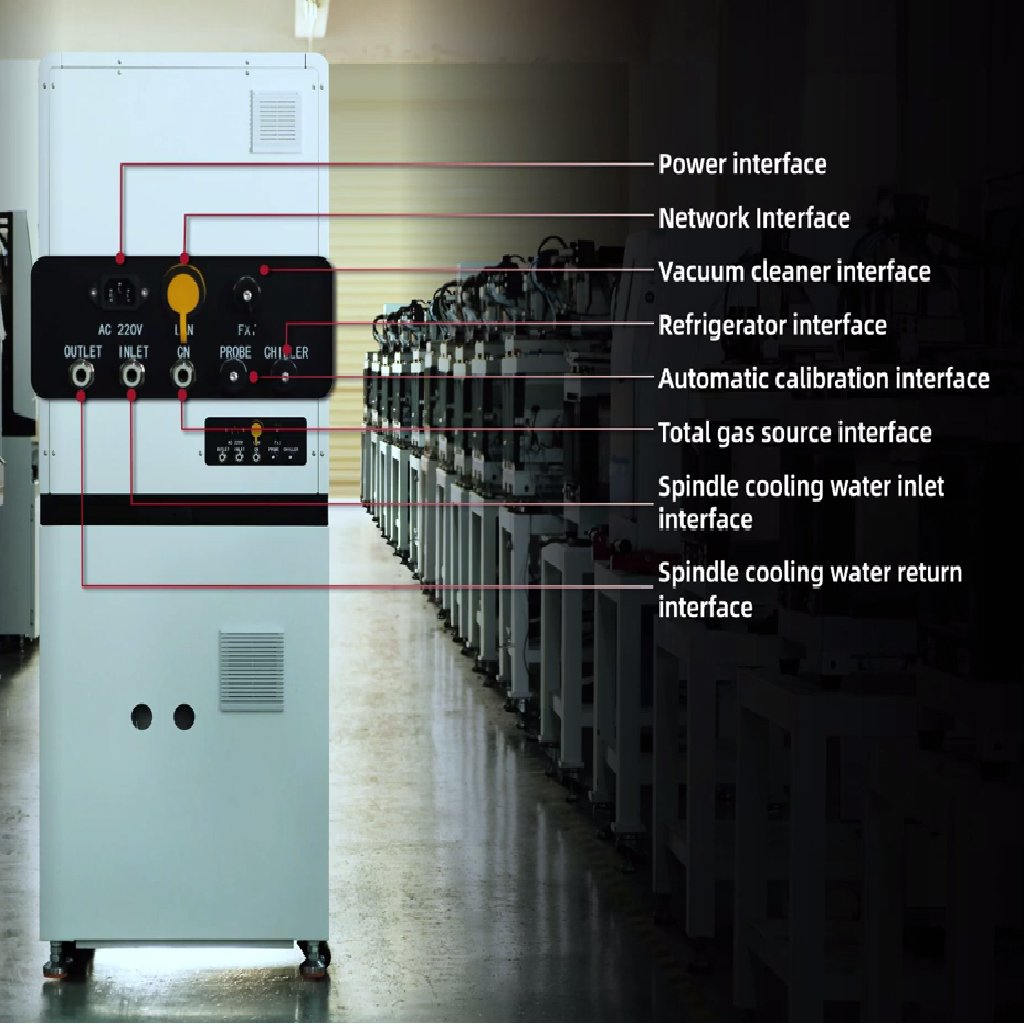

Power & Air Requirements (Input):

• Power Supply: Single-phase AC 220V (50Hz/60Hz) voltage

• Total Power: 3.7KW

• Air Supply Pressure: 6Bar

Axis Route & Travel:

• XYZ Axis Travel: $205 \times 165 \times 135$ mm

• A/B Axis Rotation: A: 360° / B: $\pm 30^\circ$
