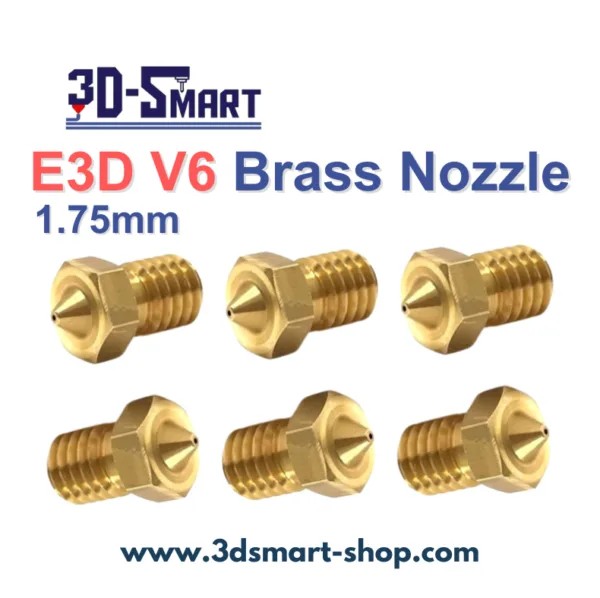

E3D V6 Brass Nozzle 1.75mm
EGP25
Filament type: 1.75mm
Compatibility: V6
Description
V6 nozzles are designed for use with the E3D V6 heater block. Modify your HotEnd to print with small nozzle orifices to achieve fine details or larger nozzle orifice sizes for more substantial, stronger 3D prints. 1.75mm Brass V6 nozzles are fully compatible with the Prusa 3D printers.
Brass
Brass nozzles, featuring E3D’s signature internal geometry, have optimal thermal properties for everyday printing, providing smooth layers for standard non-abrasive applications. Rated to a max temperature of 300°C.
V6 Nozzle Hot Tightening Guide
The V6 nozzle Hot tightening guide focuses on the hotside, the process is the same regardless of the cold side.
Using the onboard LCD or web interface heat the V6 Hotside assembly up to 285°C. Wait roughly a minute at 285°C to allow the different materials to equalise in temperature.
Using a 7mm spanner and an adjustable wrench tightening the unit.
You are aiming for 2Nm of torque here; if you apply too much pressure at this stage, you will risk shearing either the nozzle or HeatBreak. If you are concerned, we recommend the use of a torque wrench set to 2Nm.
Assembly
Brass V6 Nozzles must be hot loosened and hot tightened at 300°C.
Other V6 Nozzles must be hot loosened and hot tightened at least 20°C above the maximum temperature that you will be printing at.
E3D Brass Nozzle-1.75
0.1mm
0.4mm
0.6mm
0.8mm
1.0mm
Additional information
| Size | 0.1mm, 0.2mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm |
|---|
