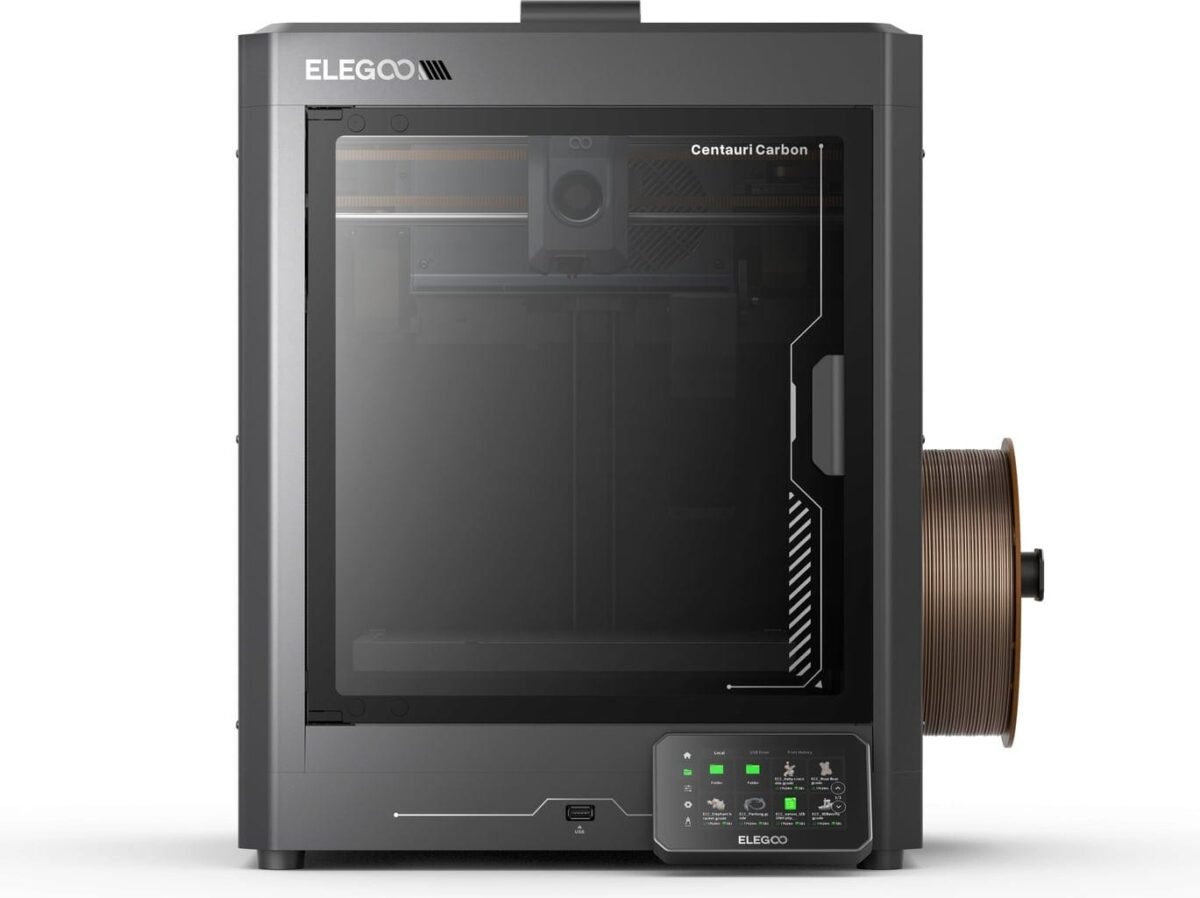

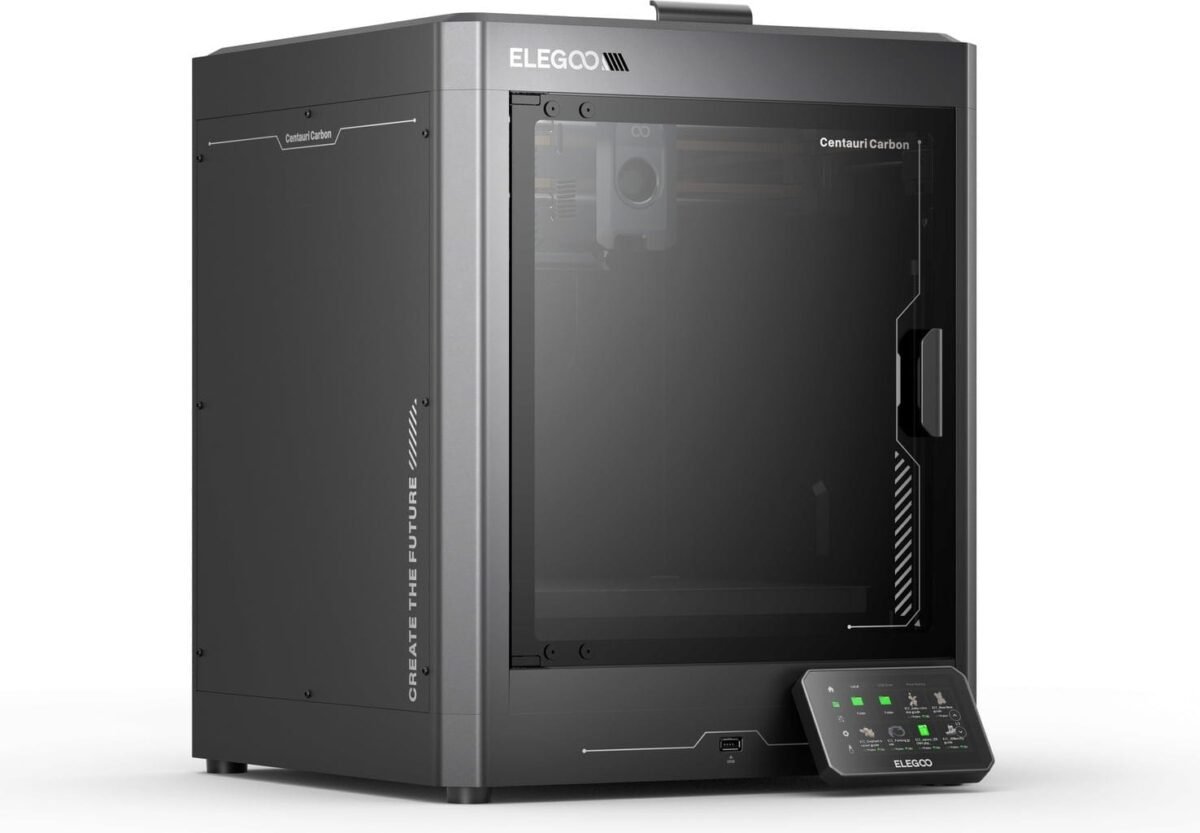

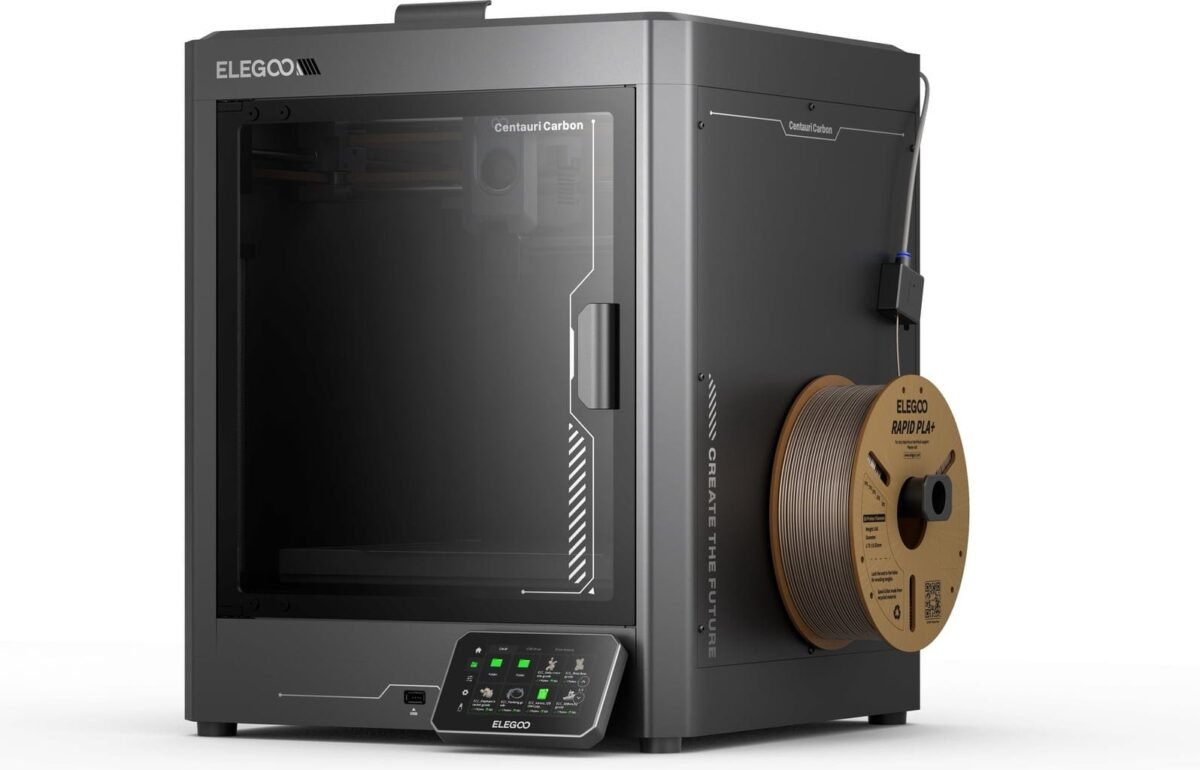

ELEGOO Centauri Carbon

Forget standard PLA and simple PETG – the ELEGOO Centauri Carbon takes your 3D printing projects to a whole new level! Thanks to its optimized processes, it effortlessly masters even demanding materials and opens up endless possibilities for high-precision prints in a wide range of applications!

►Main differences between ELEGOO Centauri & Centauri Carbon:

	Centauri Carbon	Centauri
Max. heated bed temperature	110 °C	100 °C
Supported filaments	CF, GF, PLA, PETG, ABS, ASA, TPU, PET, PC, PA	PLA, PETG, ABS, ASA, TPU
Chamber camera	yes	no
Fan	Part Cooling Fan Hotend fan Auxiliary Part Cooling Fan Chamber Temperature Regulator Fan	Part Cooling Fan Hotend Fan
Air Filter	Activated carbon filter	–

CoreXY movement system for limitless performance

With the advanced CoreXY motion system, the Centauri Carbon breaks all boundaries of speed and precision! Independent control of the X and Y axes using dual 4260 stepper motors minimizes inertia, enabling lightning-fast movements without compromising on quality.

The high-quality aluminum construction of the printer is specially designed for high-speed printing and offers unparalleled robustness without wobbling or distortion. The integrated die-cast frame and chassis provide excellent stability and minimize vibration for smooth, stable printing at top speeds:

• Maximum speed of 500 mm/s,
• Acceleration of 20 000 mm/s².

Maximum material flow for super-fast printing

With an impressive 32 mm³/s flow rate, the Centauri Carbon delivers consistent and precise extrusion, even with high-speed printing.

• 5.2:1 extrusion ratio for optimum control and consistent material feed,
• 32 mm³/s flow rate for high quality, detailed prints at maximum speed.

Ready for carbon fiber – light, strong, heat resistant

With its extended material compatibility, the Centauri Carbon brings out the best in carbon fiber printing! Create ultra-light, extremely stable and temperature-resistant components that impress in terms of strength and performance!

Technology for uncompromising material compatibility

Behind the impressive versatility of the Centauri Carbon is a sophisticated combination of high-end technology:

► 320 °C high-performance hot end & hardened steel nozzle: perfect for high-temperature materials, extremely resistant to wear and tear;

110 °C heated print bed: Guarantees reliable adhesion and stable temperature control;

Fully enclosed printing chamber: perfect printing with technical high-performance filaments far beyond PLA

Powerful cooling: Minimizes warping problems and maximizes material compatibility.

Lightning-fast heating with powerful AC print bed

Thanks to the high-performance AC heating bed, the Centauri Carbon reaches the desired temperature in a flash. This means faster preheating, an immediate print start and greater efficiency!

All-round cooling for flawless printing results

The Centauri Carbon has a triple cooling system. Each component is perfectly tuned to realize your prints quickly, precisely and flawlessly.

• 5020 High-Speed-Fan,
• Dedicated Hotend fan for even filament flow without clogging,
• Additional cooling fans.

Fully enclosed print chamber

A stable printing environment is the key to flawless results – and this is exactly what the Centauri Carbon offers with its fully enclosed printing chamber.

• Constant temperatures minimize heat loss.
• Perfect adhesion of the layers without warping and cracking.
• Ideal for high-performance materials such as ABS, ASA, PC and more.

Integrated chamber camera for full control in real time

Always keep an eye on your prints! The integrated chamber camera enables live monitoring for instant adjustments, reduces material waste and improves print reliability. Thanks to the integrated LED lighting, you can follow your project at all times – day or night.

►Time-lapse function: Capture your creative projects in spectacular time-lapse shots and share them with the world!

►Anomaly & spaghetti detection alarm: If your print goes wrong, you will be notified immediately to avoid unnecessary material loss.

►Real-time monitoring: Track your prints in real time and make sure every detail is running smoothly

Fully automatic calibration

No more tedious settings and the “paper method”! The Centauri Carbon does all the adjustment for you:

• Auto-Levelling – Perfect bed levelling without manual intervention.
• Auto-Z-Offset – Automatically sets the perfect distance between nozzle and print bed.
• Auto-Vibration-Calibration – Optimizes the printing movements for maximum precision.
• Auto-Pressure Advance calibration – Perfect extrusion, no over- or under-extrusion.

Further features:

• No complicated assembly or lengthy calibration required – simply unpack, connect and start printing,
• Incredibly user-friendly and intuitive operation,
• OTA firmware updates,
• Automatic filament unloading with just one click and integrated filament cutter,
• Semi-automatic belt tensioner for precise printing results,
• Smart functions such as filament detection, power loss recovery and fan self-check,
• Active Vibration Compensation and Pressure Advance Compensation for maximum successful printing projects,
• Dual-surface build plate with superior adhesion and the perfect first layer,
• Quiet operation below 50 dB,
• Side-mounted filament holder for easy reloading and monitoring of the material,
• Smart heatbed nozzle wiper for clean nozzles,
• Magnetic print head cover for easy nozzle changes,
• 4.3-inch capacitive touchscreen with an intuitive interface,
• Transparent tempered glass door and top cover so you can always keep an eye on your projects,
• Built-in Nano mineral crystal air filter to absorb harmful particles and unpleasant odors in the enclosed chamber.

⇒ Note: An optional filament waste container can be fitted if required. This is NOT included in the contents of delivery and must be printed out yourself; the STL file can be found on the stick supplied or on the printer itself.

Technical specifications:
