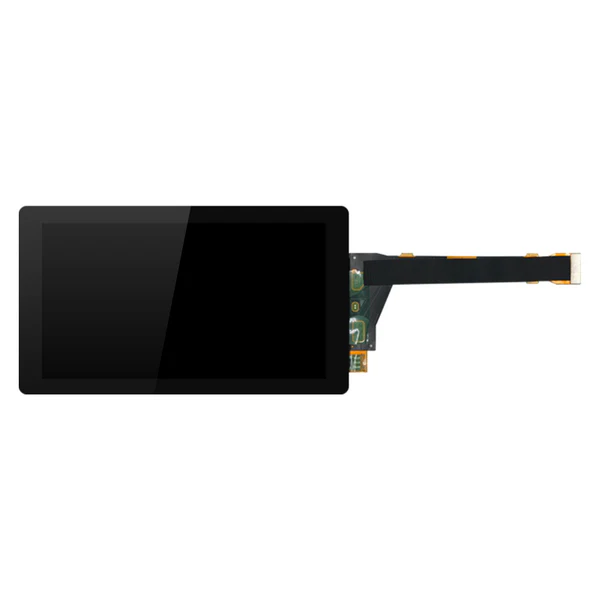

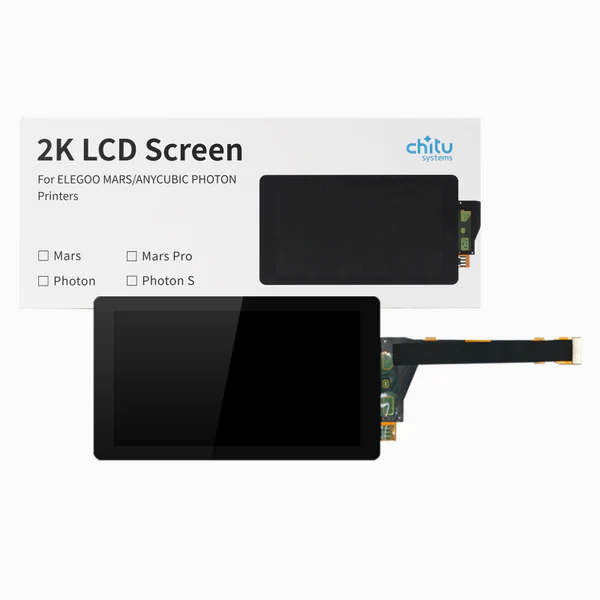

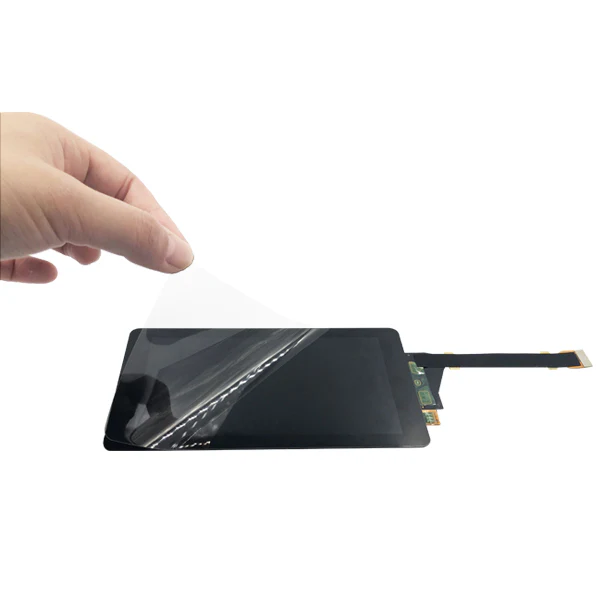

ELEGOO Mars/Anycubic Photon/Cearlity LD-002R LCD Screen Replacement

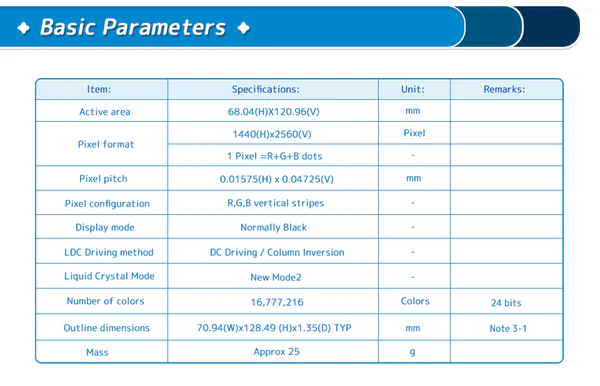

Parameter:

Applicable printer： ELEGOO Mars/Anycubic Photon/Creality LD-002r

Active area: 68.04(H)X120.96(V)  mm

Pixel format:1440(H)×2560(V) Pixel

1 Pixel =R+G+B dots

Pixel pitch: 0.01575(H) x 0.04725(V) mm

Pixel configuration: R, G, B vertical stripes

Display mode: Normally Black

LDC Driving method: DC Driving / Column Inversion

Liquid Crystal Mode: New Mode2

Number of colors  :16,777,216  Colors                 24 bits

Outline dimensions：70.94(W)×128.49 (H)×1.35(D) TYP mm

Note 3‐1

Mass： Approx 25 g

How to replace the Anycubic Photon LCD screen?

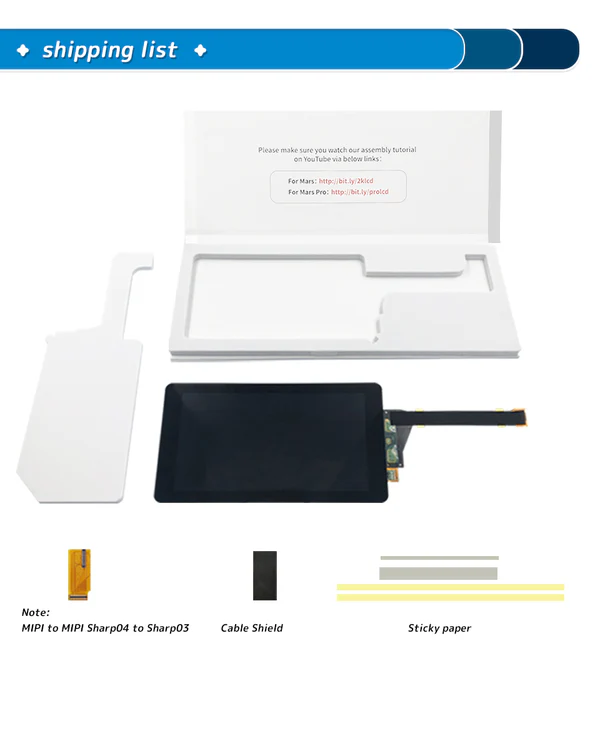

The Original Photon uses the ChiTu L V1 board, it uses SX03 pinout on the board, the screen is SX04 so you will need to use the adaptor that comes with the package.
