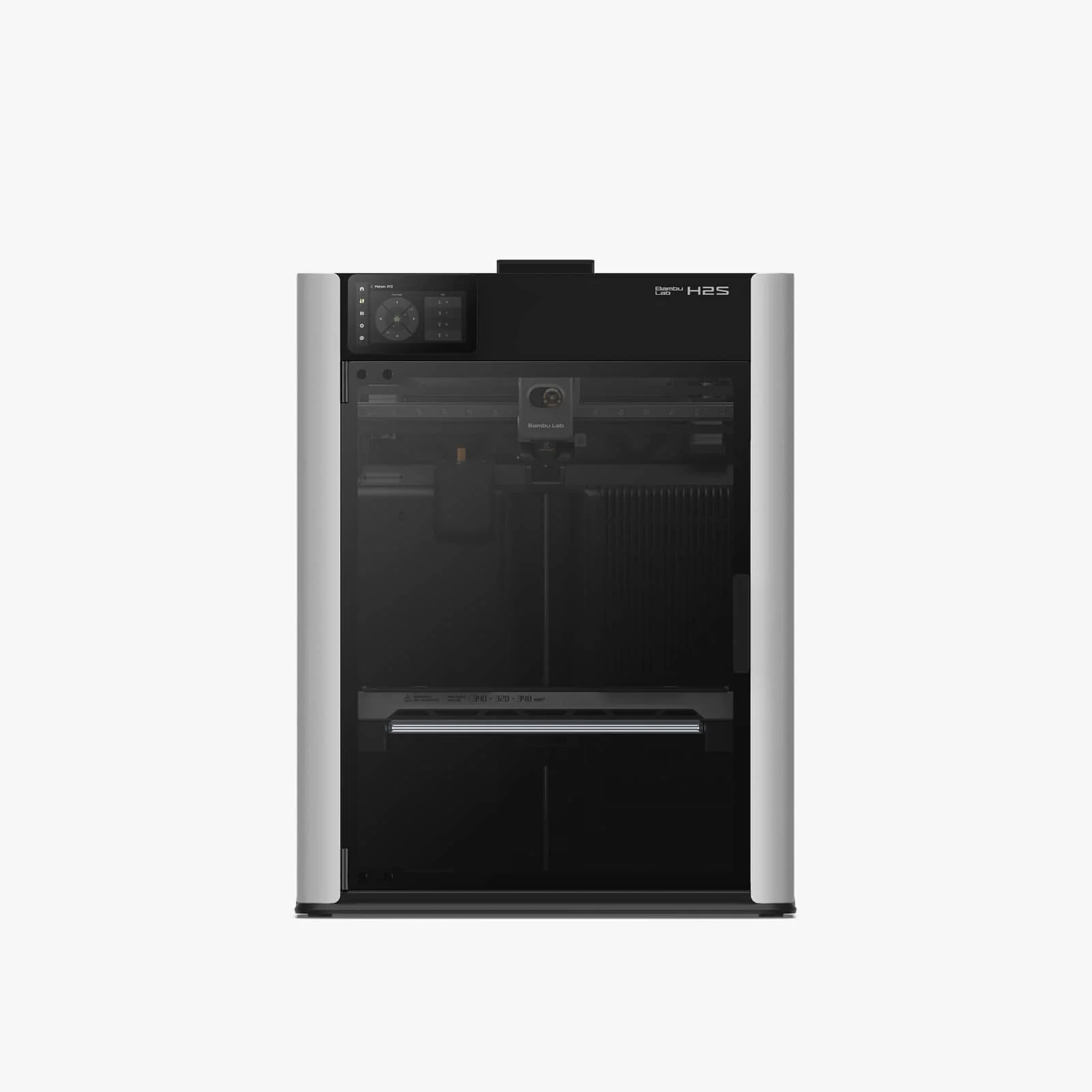

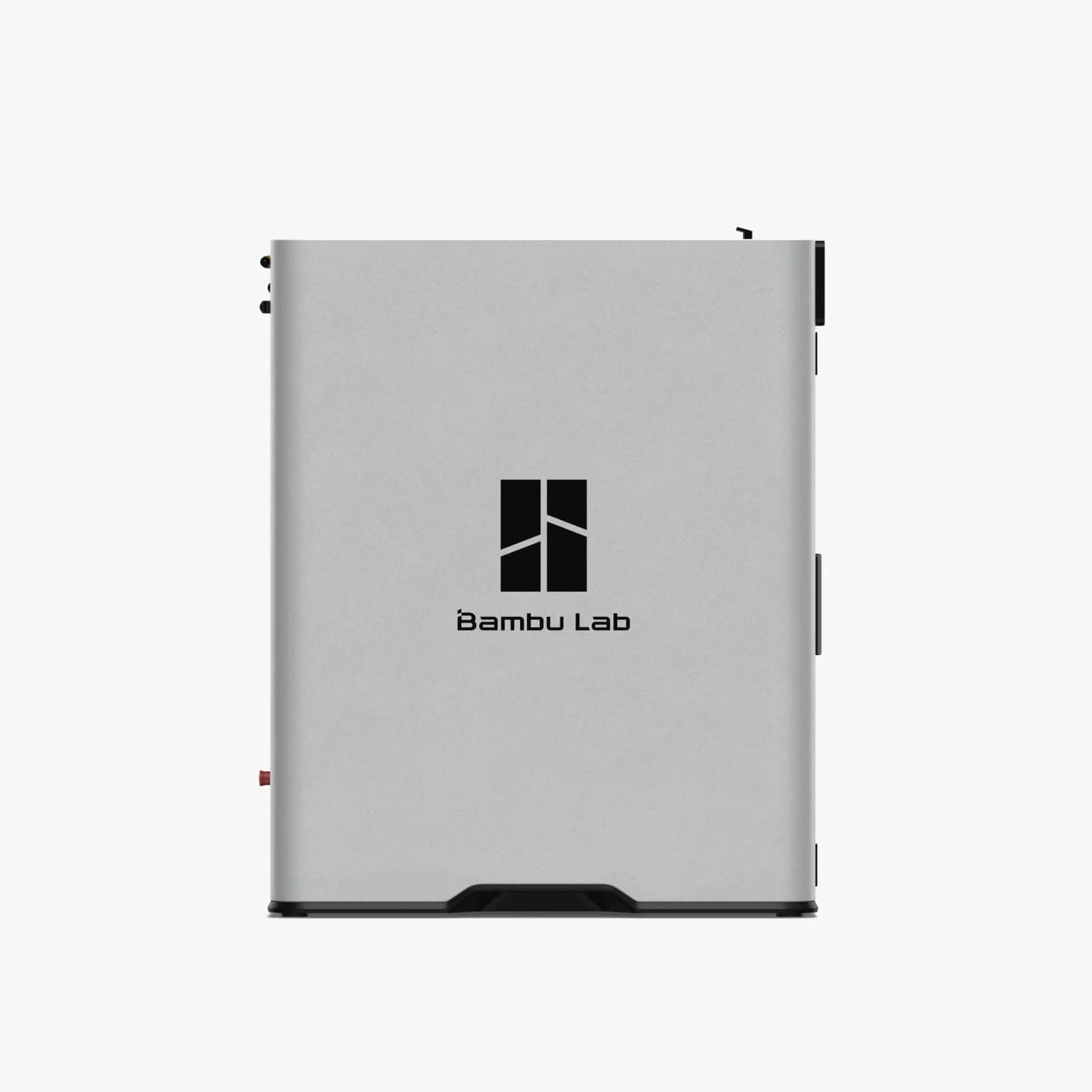

The Bambu Lab H2S is a high-performance, large-format FDM 3D printer engineered for precision manufacturing, high-speed printing, and advanced material compatibility. Designed as a standalone production system, it integrates intelligent automation, closed-loop motion control, and AI-driven monitoring without the AMS multi-material system.
Core Printing Specifications
- Printing Technology: Fused Deposition Modeling (FDM)
- Build Volume: 340 × 320 × 340 mm³
- Motion Accuracy: < 50 μm with Vision Encoder calibration
- Layer Precision: Enhanced via auto hole/contour compensation
- Maximum Nozzle Temperature: 350°C
- Chamber Heating: Active heated chamber up to 65°C
- Nozzle Diameter (Included): 0.4 mm
- Supported Nozzles: 0.2 / 0.4 / 0.6 / 0.8 mm
- Filament Diameter: 1.75 mm
Extrusion & Motion System
- Extruder Type: Closed-loop PMSM servo extruder
- Extrusion Force: Up to 10 kg (≈67% higher than stepper systems)
- Sampling Rate: 20,000 times per second (20 kHz feedback loop)
- Extrusion Control: Real-time torque vector modulation
- Vibration Compensation: Active resonance and vibration suppression
- Maximum Toolhead Speed: Up to 1000 mm/s
- Acceleration: Up to 20,000 mm/s²
- Print Speed Improvement: Up to 30% faster depending on model
Intelligent Monitoring & AI Systems
- Sensors: 23 integrated sensors
- Cameras: 3-camera vision system
- AI Features:
- Spaghetti detection
- Filament clog detection
- Purge chute monitoring
- Pre-print chamber inspection
- Filament Path Monitoring: Full-path AI detection
- Automatic Calibration: Optical motion calibration at 5 μm resolution
Material Compatibility
Supports a wide range of materials including:
- PLA / PLA Tough / PLA Matte
- PETG
- TPU
- PC (Polycarbonate)
- PPA
- PA (Nylon) and fiber-reinforced composites
Thermal & Environmental Control
- Chamber Modes:
- High-temp sealed circulation
- Low-temp ventilated airflow
- Cooling Control: Closed-loop fan management
- Warping Reduction: Optimized thermal stability for engineering materials
Mechanical & Build Design
- Chassis: All-metal die-cast aluminum alloy frame
- Structure Materials: Aluminum, steel, plastic, glass
- Extruder Gears: Hardened steel
- Nozzle Material: Hardened steel
- Filament Cutter: Integrated automatic cutter
- Noise Level: < 50 dB operation
Connectivity & Software
- Connectivity:
- Cloud-enabled remote control
- Full offline operation support
- Developer Mode: MQTT access for integrations
- File Transfer: LAN, cloud, or local storage
- Software Ecosystem:
- Bambu Studio
- Mobile remote management
- Security Compliance:
- EU RED Article 3.3(d)(e)
- ETSI EN 303 645 V2.1.1:2020
Physical Specifications
- Printer Dimensions: 492 × 514 × 626 mm
- Package Dimensions: 620 × 620 × 755 mm
- Net Weight: 30 kg (gross ~37.5 kg)
- Recommended Space: 700 × 700 × 1100 mm
Electrical Specifications
- Voltage Range: 100–120 V
Key System Capabilities
- High-speed, high-precision large-format 3D printing
- Advanced AI-assisted monitoring and calibration
- High-temperature printing for engineering materials
- Fully enclosed, thermally controlled environment
- Expandable with optional AMS system (sold separately)
