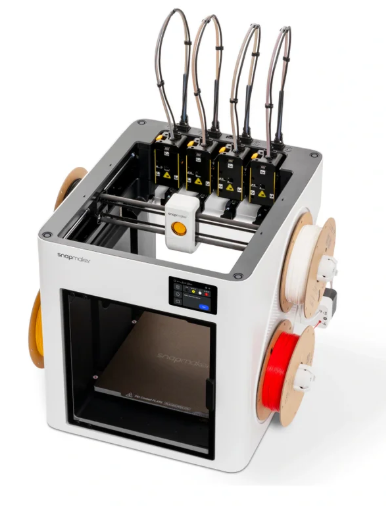

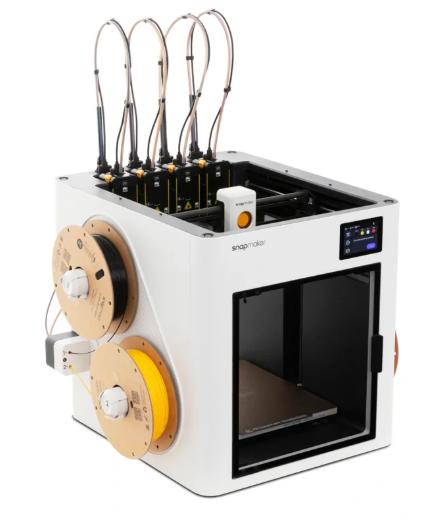

Snapmaker U1 3D Printer Egypt

Printing Properties

Printing Technology

Fused Deposition Modeling

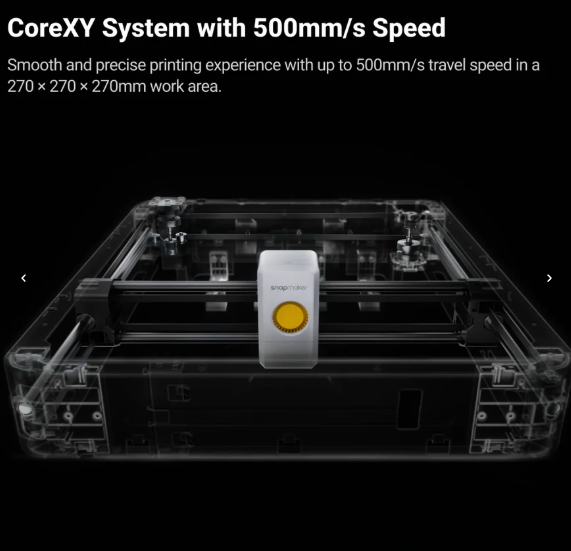

Build Volume

270mm × 270mm × 270mm

Max Toolhead Speed

500mm/s

Max Acceleration Speed

20,000mm/s²

Toolhead

Toolheads Included

4

Max Flow for Hot End

32mm³/s[6]

Nozzle

Stainless Steel

Max Nozzle Temperature

300°C

Nozzle Diameter

0.4mm

Filament Diameter

1.75mm

Part Cooling

Main & Auxiliary Part Cooling Fans

Heated Bed

Build Plate

Flexible Steel Sheet with PEI Surface

Max Heated Bed Temperature

100°C

Supported Filament Type

Basic Material Compatibility

PLA, PETG, TPU, PVA, PCTG

With Optional Top Cover

PLA, PETG, TPU, PVA, PET, ABS, ASA, PA, PC

With Top Cover & Hardened Steel Nozzle

PLA, PETG, TPU, PVA, PET, ABS, ASA, PA, PC, Carbon-fiber-reinforced Polymer, Glass-fiber-reinforced Polymer

Electronics

Touchscreen

3.5-inch 320 × 480 Touchscreen

Data Transmission Methods

Wi-Fi (IEEE802.11b/g/n Standards, 2.4GHz), USB Flash Drive

Storage

26 GB eMMC

Live View Camera

2 Megapixel Built-in Chamber Camera

Max Input Power

1150 W (220-240 V~), 400 W (100-120V~)

Max Input Current

6 A(220-240V~), 4 A(100-120 V~)

Auto-calibration

Heated Bed Leveling

Mesh Bed Leveling

Active Vibration Control

Accelerometer & Input Shaping Calibration

Automatic Flow Compensation

Pressure Advance Calibration

Automatic Toolhead Offset Calibration

Coordinate Measuring Calibration

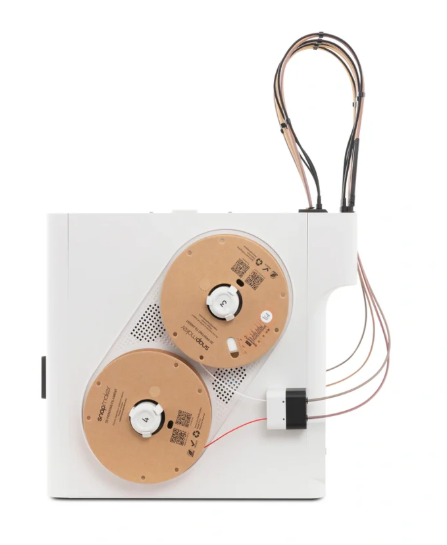

Automatic Filament System

Auto-feed

Supported

Backup Mode

Supported

Filament RFID Recognition

Supported

Failure Detection

Air Printing Detection

Supported

Filament Run Out Detection

Supported

Power Loss Recovery

Supported

Anomaly Detection

Toolhead Swap Error Detection

Supported

Build Plate Presence Detection

Supported

Build Plate Obstruction Detection

Supported

Software

Supported Slicer

Snapmaker Orca, Orcaslicer

APP

Snapmaker APP

Operating System

Software

Windows, macOS, Linux

APP

Android, iOS

Firmware

Firmware

Klipper
